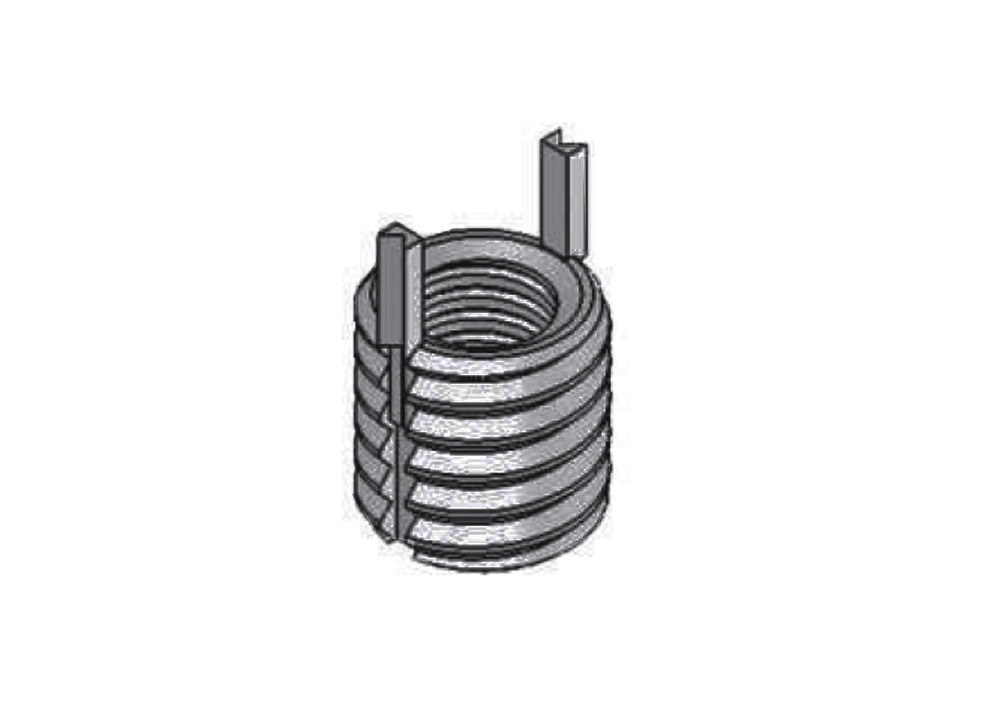

KNHML5x0.8 Metric Series Keensert
KNHML5X0.80
See PDF Document in 'Download' window for available sizes and Installation Instructions
Features
M5 x 0.80 class 5H Internal thread ( locking)
M10 x 1.25 class 4H External Thread with modified minor diameter
Hole Preparation Tap Drill size 8.80mm
M10 x 1.25 class 6H Thread Tap size, Min 12.5 deep
Material
Insert -303CRES (passivated)
Kees-302CRES
Quick Quote
Need a quote fast?
Enter your requirements and get a quote back in minutes...
| Company Name | |
| Part Number | KNHML5x0.8 |
| Minimum order quantity | 10 |
| Your order quantity | |
| Tool Required | Y/N |
| Send |
Installation Tools
Metric Installation Tools for Light Duty KeensertsĀ® available in thread sizes M4 - M24
CAD Models
CAD Models are available upon request
