Potted Inserts

Inserts for Honeycomb Panels

Clarendon Specialty Fasteners is an EN/AS9100 manufacturer of inserts commonly used in honeycomb panels. Parts are produced in MeƟstetten in the south of Germany.

We manufacture inserts to aerospace standards (NAS1832, NAS1833, NAS1834, NAS1835, NAS1836, NAS1837, DIN) and customer specials made to custom drawings and specifications with full aerospace traceability.

Parts are supplied with full aerospace traceability and test reports, and are manufactured in compliance with REACH regulation and DFARS requirements.

Why Choose Clarendon?

  • AS / EN 9100 and 9200 Approved
  • Various packaging options available
    Trays, tubes, and bulk packed
  • Special inserts made to customer drawings

Want to know more?

Contact our Sales Team:

Downloads:

NAS Standards

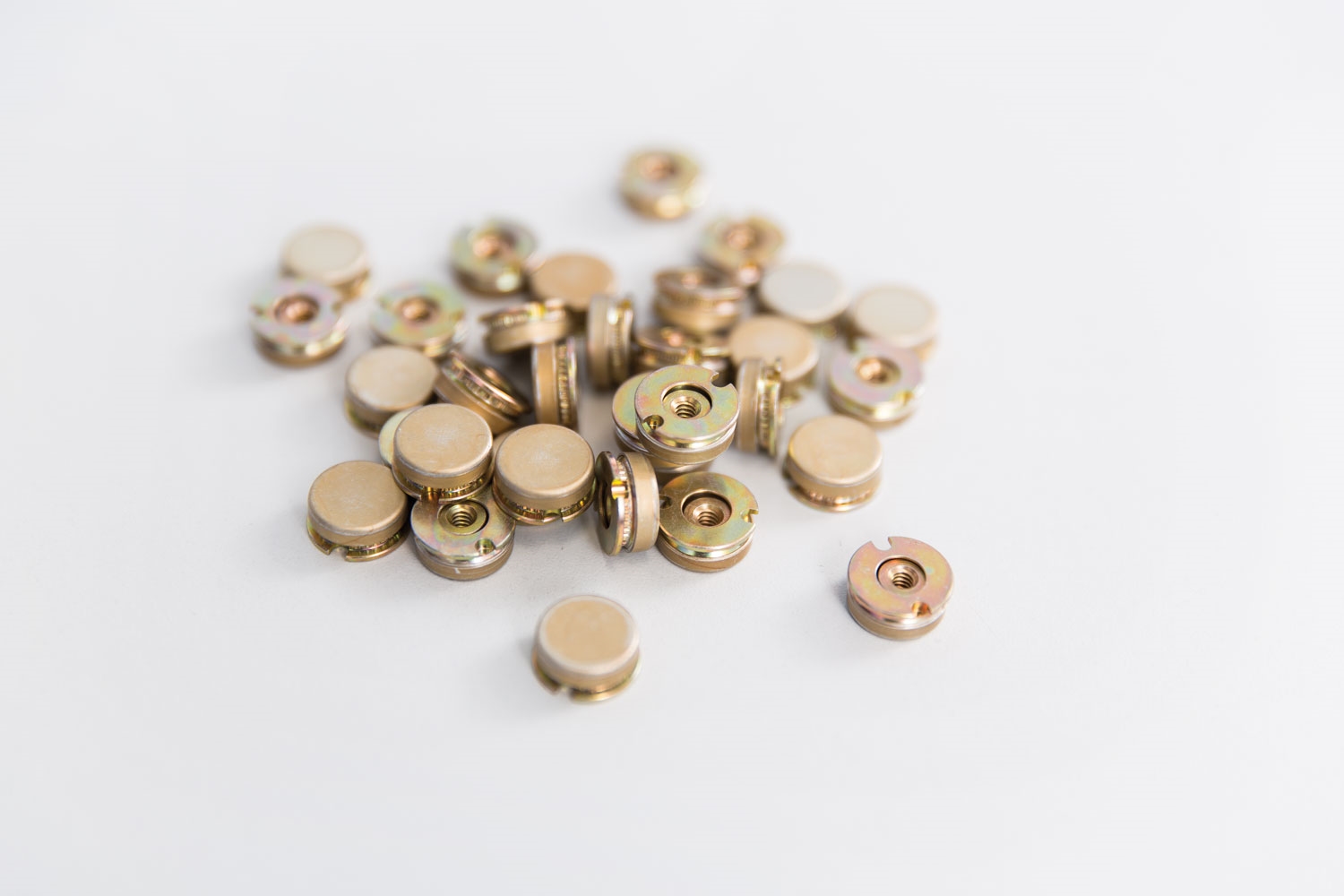

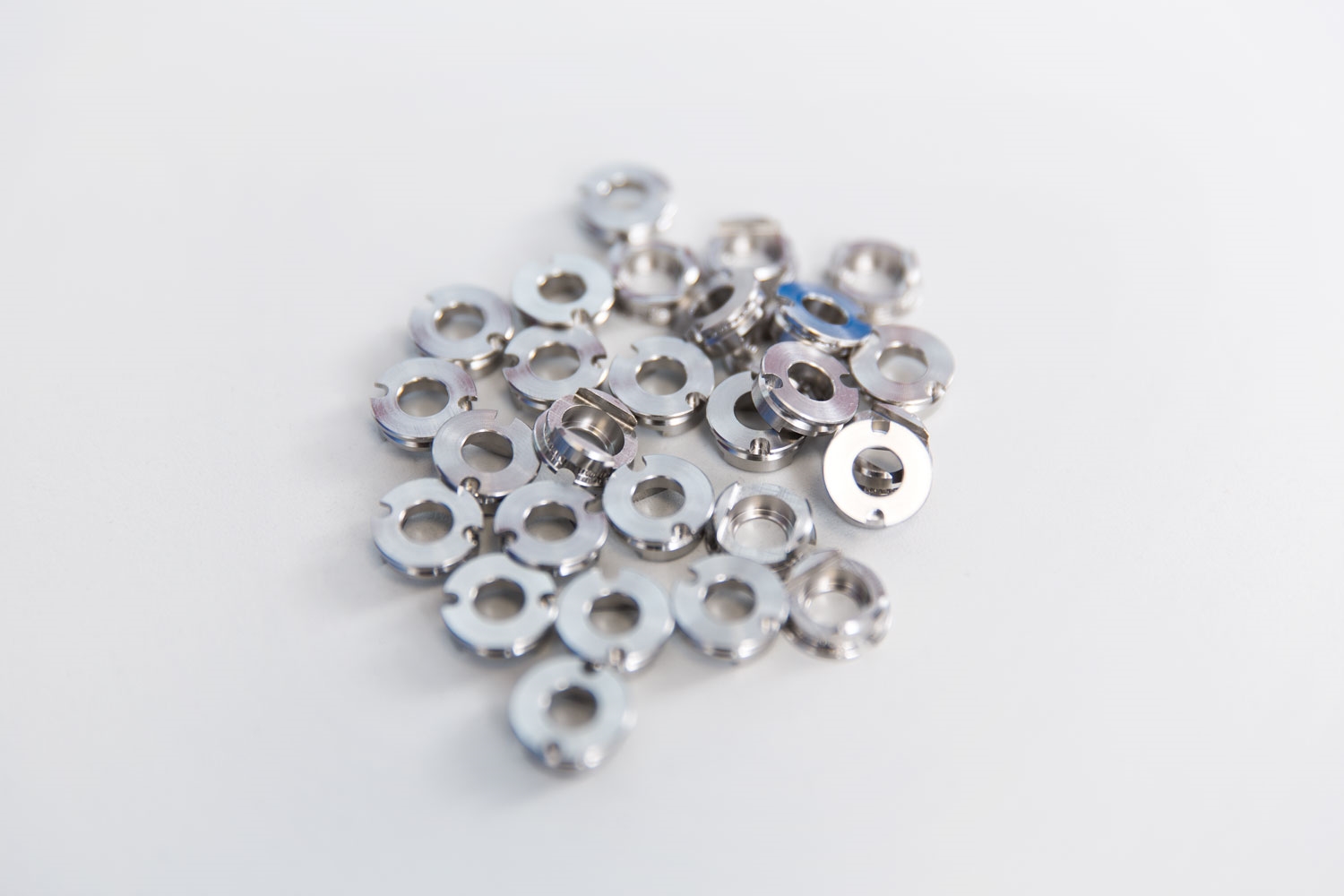

Metal Inserts

Imperial

Metalic Inserts

Metric

Metalic Inserts

Tabs

NAS1837

Materials and Finishing

  • Standard Materials
    Steel, CRES (Stainless Steel) and Aluminium
  • Standard Finishing
    CAD Plated, Passivation, Anodized, Silver
    Plating and Molikote
  • Special Materials
    Titanium, Ultem and other aerospace grade
    metals

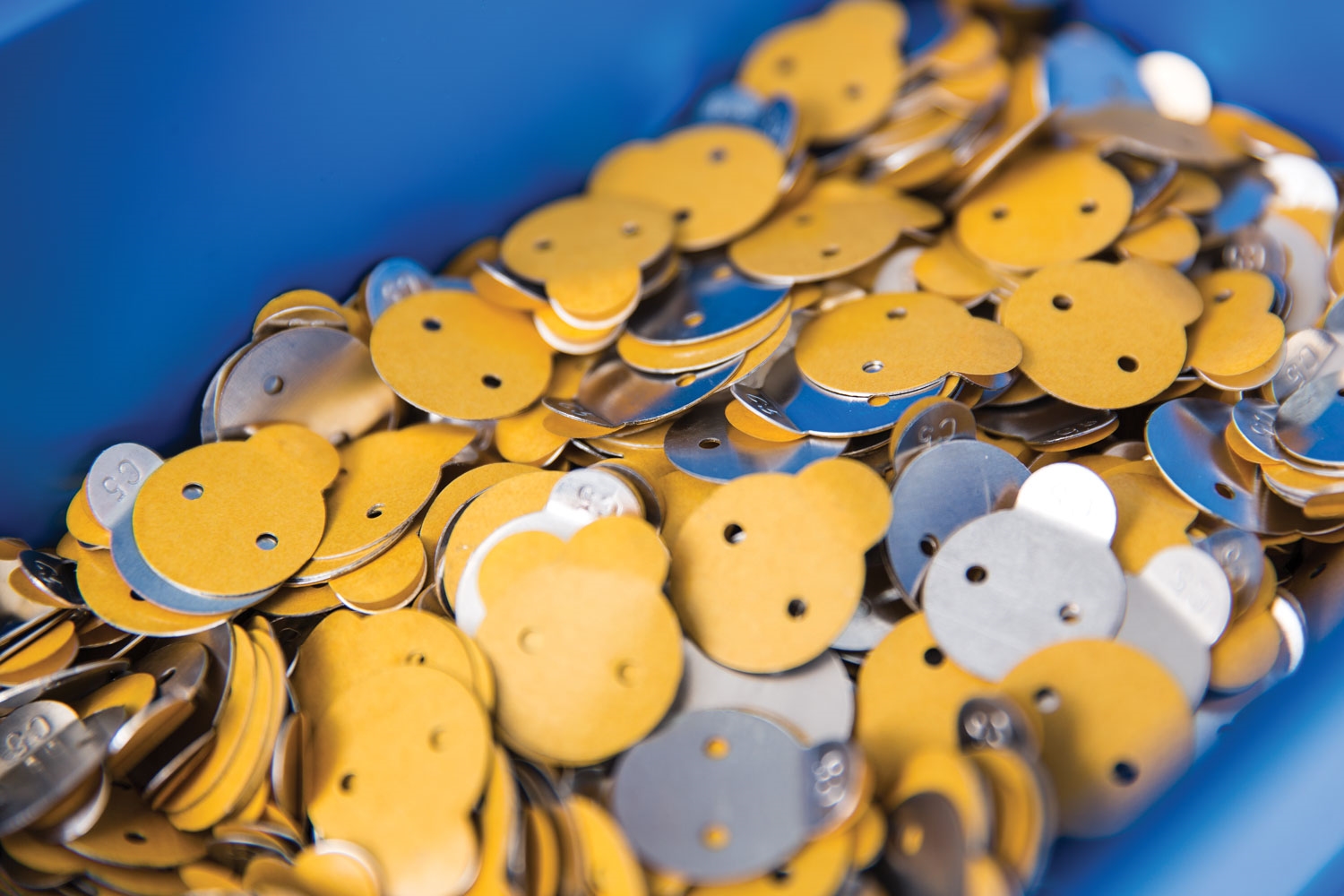

Tabs

  • Tabs made to NAS1837 Standard
    Available in Plastic or Aluminium
  • Option to have tabs mounted to inserts
    Pre-installed tabs ready to be used in the assembly line
  • Custom Made Tabs
    Available in right-angle shape for corner applications

Added Value

Installation

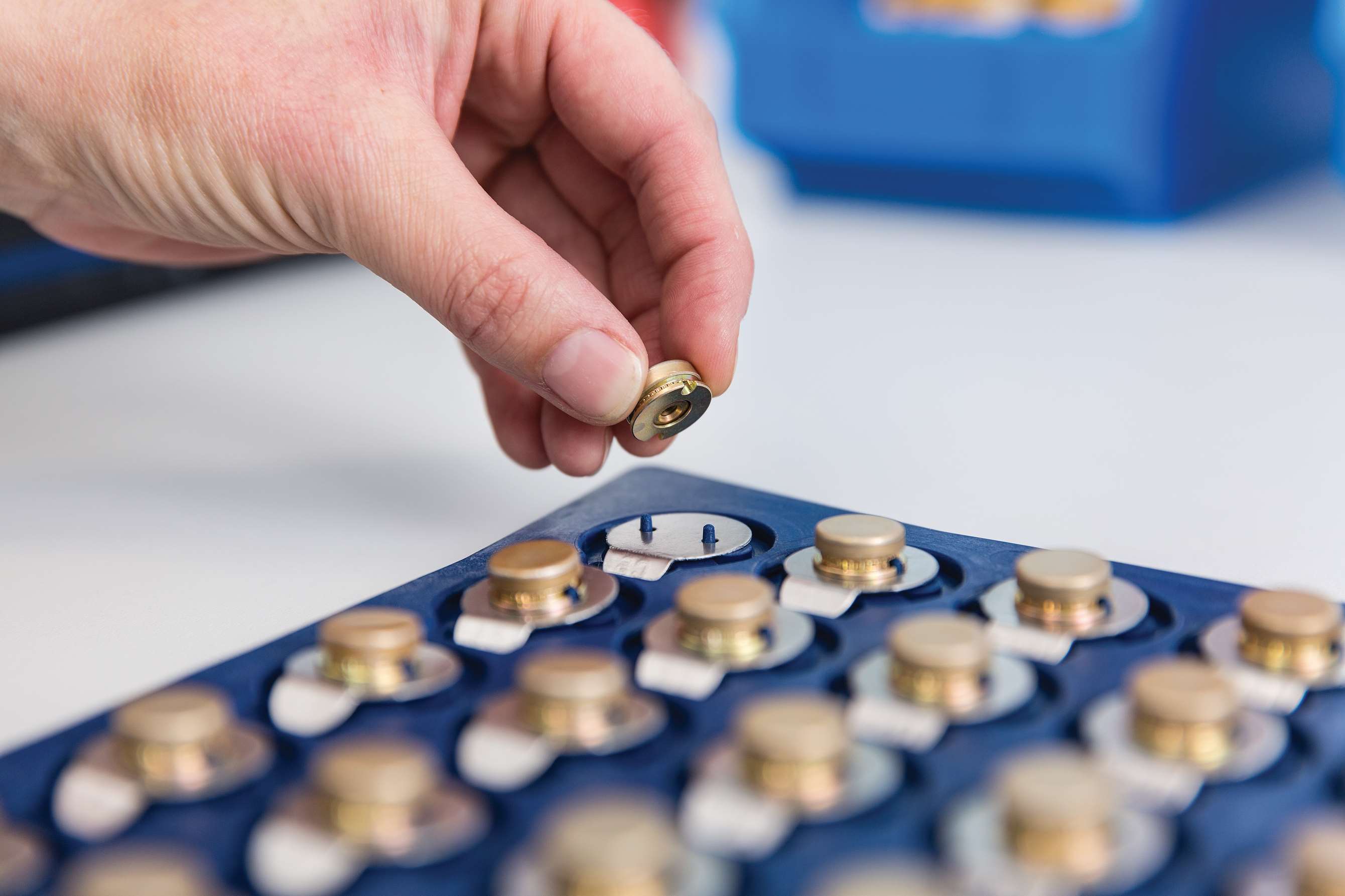

  • Parts can be supplied with the tabs pre-installed to the insert, ready for use on the assembly line

Special Packaging

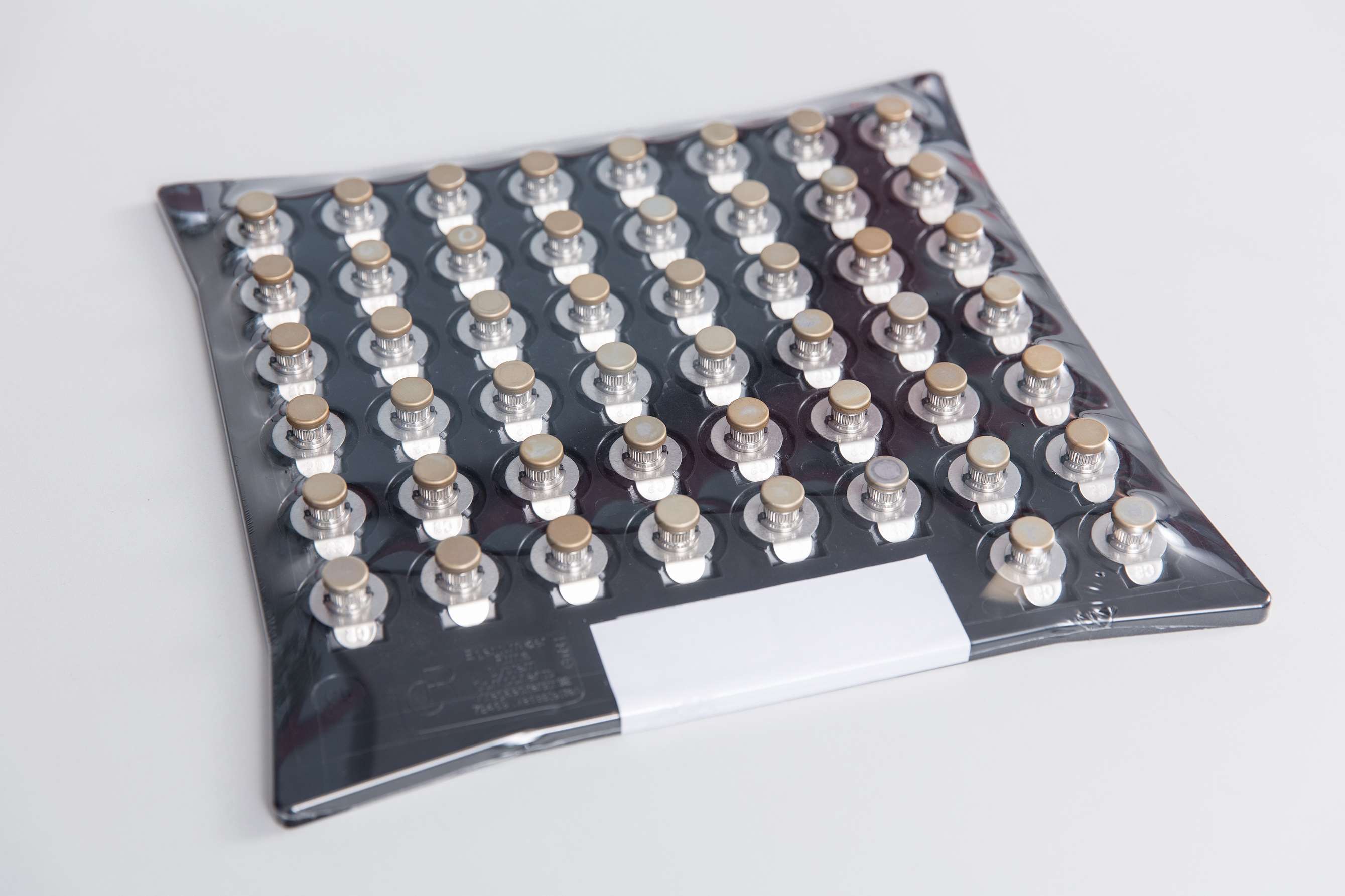

  • Pre-installed inserts can be supplied in boxes, tubes and trays

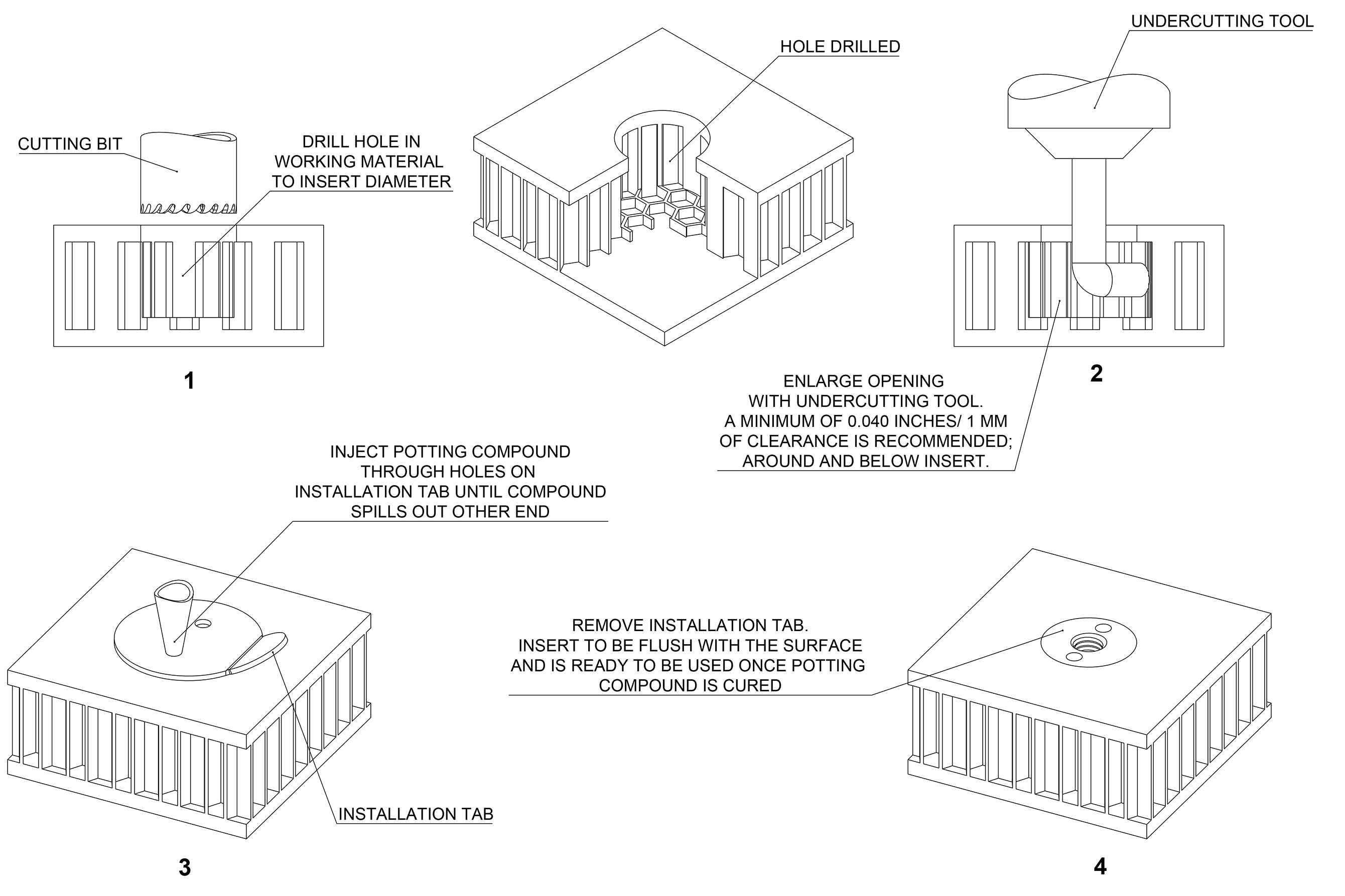

How to Install a Potted Insert

  1. DRILL HOLE IN WORKING MATERIAL TO INSERT DIAMETER.
  2. ENLARGE OPENING WITH UNDERCUTTING TOOL. A MINIMUM OF 0.040 INCHES/ 1 MM OF CLEARANCE IS RECOMMENDED; AROUND AND BELOW INSERT.
  3. INJECT POTTING COMPOUND THROUGH HOLES ON INSTALLATION TAB UNTIL COMPOUND SPILLS OUT OTHER END.
  4. REMOVE INSTALLATION TAB. INSERT TO BE FLUSH WITH THE SURFACE AND IS READY TO BE USED ONCE POTTING COMPOUND IS CURED.
