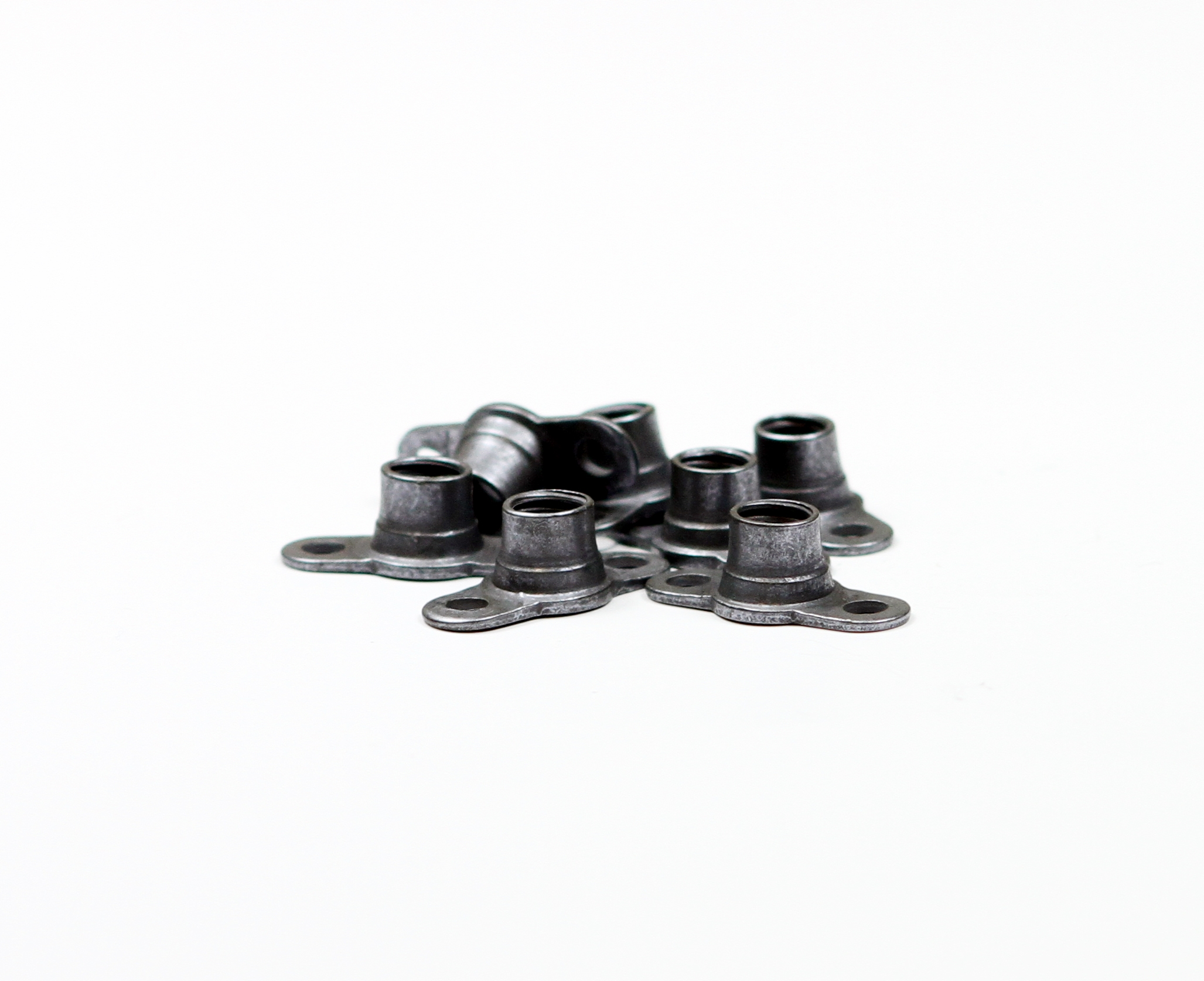

Anchor Nuts

We offer a wide range of Anchor nuts & Plate nuts that meet varying standards and specifications, including:

  • one-lug
  • two-lug
  • corner
  • right-angle
  • full-size, miniature
  • fixed, floating
  • locking
Anchor Nuts

You can now buy online at

Clarendon Fasttrack:

Buy Anchor Nuts on Clarendon Fasttrack now
Based in the US? Order online at Clarendon Fasttrack US

Alternatively, contact our sales team:

Speak to our sales team about anchor nuts

Imperial

StylePart NumberMS Part NumberSize
Floating Anchor NutF5000-3MS21059L3N10/32 UNF
F5000-4MS21059L4N1/4 UNF
F5000-5-5/16 UNF
F5000-6-3/8 UNF

Floating Anchor Nut

Floating Anchor Nut

Metric

StylePart NumberLN Part NumberSize
Floating Anchor NutFM5000-030LN29679AM3M3 (3x0.5)
FM5000-040LN29679AM4M4 (4x0.7)
FM5000-050LN29679AM5M5 (5x0.8)
FM5000-060LN29679AM6M6 (6x1.0)
FM5000-080LN29679AM8M8 (8x1.25)
FM5000-080F-M8 (8x1.0)
FM5000-100-M10 (10x1.5)
FM5000-100F-M10 (10x1.25)

Imperial

StylePart NumberMS Part NumberSize
Fixed Anchor NutK1000-3MS21047L310/32 UNF
K1000-4MS21047L41/4 UNF
K1000-5-5/16 UNF
K1000-6-3/8 UNF
K1000-7-7/16 UNF

Fixed Anchor Nut

Fixed Anchor Nut

Metric

StylePart NumberLN Part NumberSize
Fixed Anchor NutKM1000-030LN29671AM3M3 (3x0.5)
KM1000-040LN29671AM4M4 (4x0.7)
KM1000-050LN29671AM5
M5 (5x0.8)
KM1000-060LN29671AM6M6 (6x1.0)
KM1000-080LN29671AM8M8 (8x1.25)
KM1000-080F-M8 (8x1.0)
KM1000-100LN29671AM10M10 (10x1.5)
KM1000-100FLN29671AM10x1.25M10 (10x1.25)

Imperial

StylePart NumberMS Part NumberSize
Miniature Floating Anchor NutMF5000-3MS21075L3N10/32 UNF
MF5000-4MS21075L4N1/4 UNF
MF5000-5MS21075L5N5/16 UNF

Miniature Floating Anchor Nut

Miniature Floating Anchor Nut

Metric

StylePart NumberLN Part NumberSize
Miniature Floating Anchor NutMFM5000-040LN29910M4M4 (4x0.7)
MFM5000-050LN29910M5
M5 (5x0.8)
MFM5000-060LN29910M6M6 (6x1.0)

Imperial

StylePart NumberMS Part NumberSize
Miniature Fixed AnchorMK1000-3MS21069L310/32 UNF
MK1000-4MS21069L41/4 UNF
MK1000-5MS21069L55/16 UNF

Miniature Fixed Anchor Nut

miniature fixed anchor.jpg

Metric

StylePart NumberSizeMaterialFinish
Miniature Fixed AnchorMKM1000-040M4 (4x0.7)
MKM1000-050M5 (5x0.8)
MKM1000-060M6 (6x1.0)

Imperial

StylePart NumberMS Part NumberSize
Floating One Lug Anchor NutF2000-3MS21061L310/32 UNF
F2000-4MS21061L41/4 UNF
F2000-5MS21061L55/16 UNF
F2000-6-3/8 UNF

Floating One Lug Anchor Nut

Floating One Lug Anchor Nut

Metric

StylePart NumberLN Part NumberSize
Floating One Lug Anchor NutFM2000-030LN29681AM3M3 (3x0.5)
FM2000-040LN29681AM4M4 (4x0.7)
FM2000-050LN29681AM5M5 (5x0.8)
FM2000-060LN29681AM6M6 (6x1.0)
FM2000-080LN29681AM8M8 (8x1.25)
FM2000-080F-M8 (8x1.0)

Imperial

StylePart NumberMS Part NumberSize
Fixed One Lug AnchorK2000-3MS21051L310/32 UNF
K2000-4MS21051L41/4 UNF
K2000-5MS21051L55/16 UNF
K2000-6-3/8 UNF

Fixed One Lug Anchor Nut

Fixed One Lug Anchor Nut

Metric

StylePart NumberSize
Fixed One Lug Anchor NutKM2000-030M3 (3x0.5)
KM2000-040M4 (4x0.7)
KM2000-050M5 (5x0.8)
KM2000-060M6 (6x1.0)
KM2000-080M8 (8x1.25)
KM2000-080FM8 (8x1.0)
KM2000-100M10 (10x1.5)
KM2000-100FM10 (10x1.25)

Imperial

StylePart NumberMS Part NumberSize
Corner Anchor NutK3000-3MS21055L310/32 UNF
K3000-4MS21055L41/4 UNF
K3000-5MS21055L55/16 UNF
K3000-63/8 UNF
K3000-77/16 UNF

Corner Anchor Nut

Corner Anchor Nut

Metric

StylePart NumberLN Part NumberSize
Corner Anchor NutKM3000-030LN29675AM3M3 (3x0.5)
KM3000-040LN29675AM4M4 (4x0.7)
KM3000-050LN29675AM5M5 (5x0.8)
KM3000-060LN29675AM6M6 (6x1.0)
KM3000-080LN29675AM8M8 (8x1.25)
KM3000-080F-M8 (8x1.0)
KM3000-100-M10 (10x1.5)
KM3000-100F-M10 (10x1.25)
