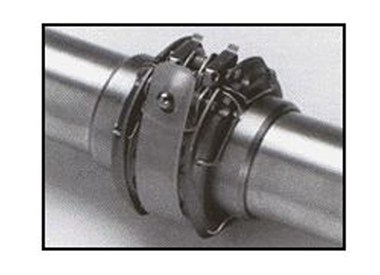

14J34 Series Flexible Coupling
14J34 Series
Locks Automatically: Clam-shell closure locks automatically when two halves are snapped together and cannot disengage accidentally since all three latch pawls must be lifted simultaneously to disengage the latch.
Easily Inspected: Visual inspection from a distance provides positive indication that the closure is fully engaged and securely locked.
Safety Device: The safety device is provided to help prevent mis-installation. The safety device cannot be engaged unless the coupling has been completely closed.
Flexible: Axial adjustment 1/4" angular misalignment is Ā±4Ā° for full couplings.
Meets Military/Commercial Requirements: Coupling design conforms to and has been qualified to all applicable military and commercial specification requirements for flexible fuel couplings, environmental control systems or potable water systems.
Lightning: Protection is provided to at least 1500 amperes when tested per MIL-STD-1757A, method T03 using current component B waveshape.
Self Bonding: Electrical bonding to class "S" of MIL-B-5087B is automatically provided when the coupling is assembled.
