50F Series

50F Series medium duty quarter turn fastener studs are available in a range of head styles and sizes.

View the tables below, select your preferred head style and click on a part number for more information.

N.B When selecting a quarter turn fastener assembly it is essential to know the grip range of your application.

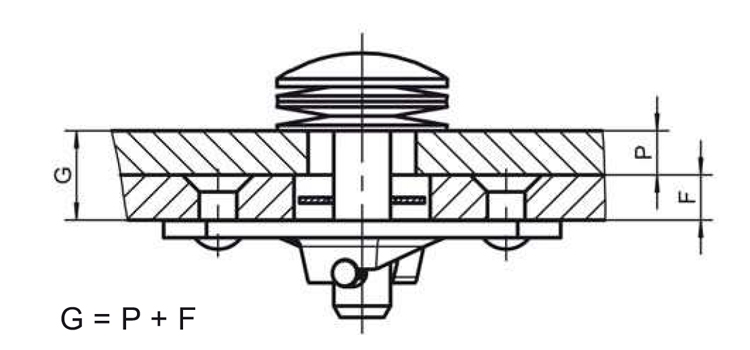

Panel (P) + Frame (F) = Grip (G)

Downloads:

Selecting the Fastener


P = Panel Thickness

F = Frame Thickness

G = Total thickness/Grip (P + F) as well as possible gaskets, paint thickness or gaps. This dimension gives the stud length number in the corresponding series tables.

50F Series Features

  • Max. tensile strength 3700 N, working load 2600 N
  • Small fastener giving a high tensile load
  • Flat receptacle
  • Wide range of stud head styles
Head StylePart NumberReceptacleGrip Range (mm)MaterialFinish
Slotted Recess Head50E8-2AGV
Rivet/Screw Mounting0.50-1.10Steel/Zinc PlatedCrVI-free passivated

50E8-3AGV
Rivet/Screw Mounting1.10-1.70Steel/Zinc PlatedCrVI-free passivated

50E8-4AGV
Rivet/Screw Mounting1.70-2.30Steel/Zinc PlatedCrVI-free passivated

50E8-5AGV
Rivet/Screw Mounting2.30-2.90Steel/Zinc PlatedCrVI-free passivated

50E8-6AGV
Rivet/Screw Mounting2.90-3.50Steel/Zinc PlatedCrVI-free passivated

50E8-7AGV
Rivet/Screw Mounting3.50-4.10Steel/Zinc PlatedCrVI-free passivated

50E8-8AGV
Rivet/Screw Mounting4.10-4.70Steel/Zinc PlatedCrVI-free passivated

50E8-9AGV
Rivet/Screw Mounting4.70-5.30Steel/Zinc PlatedCrVI-free passivated

50E8-10AGV
Rivet/Screw Mounting5.30-5.90Steel/Zinc PlatedCrVI-free passivated

50E8-11AGV
Rivet/Screw Mounting5.90-6.50Steel/Zinc PlatedCrVI-free passivated

50E8-12AGV
Rivet/Screw Mounting6.50-7.10Steel/Zinc PlatedCrVI-free passivated

50E8-13AGV
Rivet/Screw Mounting7.10-7.70Steel/Zinc PlatedCrVI-free passivated

50E8-14AGV
Rivet/Screw Mounting7.70-8.30Steel/Zinc PlatedCrVI-free passivated

50E8-15AGV
Rivet/Screw Mounting8.30-8.90Steel/Zinc PlatedCrVI-free passivated

50E8-16AGV
Rivet/Screw Mounting8.90-9.50Steel/Zinc PlatedCrVI-free passivated

50E8-17AGV
Rivet/Screw Mounting9.50-10.10Steel/Zinc PlatedCrVI-free passivated

50E8-18AGV
Rivet/Screw Mounting10.10-10.70Steel/Zinc PlatedCrVI-free passivated

50E8-19AGV
Rivet/Screw Mounting10.70-11.30Steel/Zinc PlatedCrVI-free passivated

50E8-20AGV
Rivet/Screw Mounting11.30-11.90Steel/Zinc PlatedCrVI-free passivated

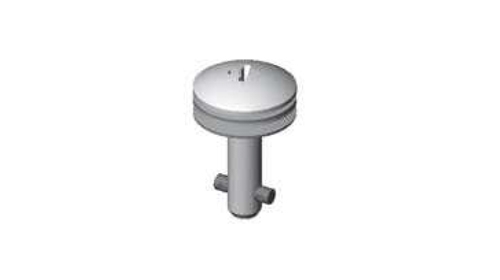

Slotted Recess Head


Longer stud lengths are available, please contact the office for more information

Head StylePart NumberReceptacleGrip Range (mm)MaterialFinish
Cross Recess Head50E71-2AGV
Rivet/Screw Mounting0.50-1.10Steel/Zinc PlatedCrVI-free passivated

50E71-3AGV
Rivet/Screw Mounting1.10-1.70Steel/Zinc PlatedCrVI-free passivated

50E71-4AGV
Rivet/Screw Mounting
1.70-2.30Steel/Zinc PlatedCrVI-free passivated

50E71-5AGV
Rivet/Screw Mounting2.30-2.90Steel/Zinc PlatedCrVI-free passivated

50E71-6AGV
Rivet/Screw Mounting2.90-3.50Steel/Zinc PlatedCrVI-free passivated

50E71-7AGV
Rivet/Screw Mounting3.50-4.10Steel/Zinc PlatedCrVI-free passivated

50E71-8AGV
Rivet/Screw Mounting4.10-4.70Steel/Zinc PlatedCrVI-free passivated

50E71-9AGV
Rivet/Screw Mounting4.70-5.30Steel/Zinc PlatedCrVI-free passivated

50E71-10AGV
Rivet/Screw Mounting5.30-5.90Steel/Zinc PlatedCrVI-free passivated

50E71-11AGV
Rivet/Screw Mounting5.90-6.50Steel/Zinc PlatedCrVI-free passivated

50E71-12AGV
Rivet/Screw Mounting6.50-7.10Steel/Zinc PlatedCrVI-free passivated

50E71-13AGV
Rivet/Screw Mounting7.10-7.70Steel/Zinc PlatedCrVI-free passivated

50E71-14AGV
Rivet/Screw Mounting7.70-8.30Steel/Zinc PlatedCrVI-free passivated

50E71-15AGV
Rivet/Screw Mounting8.30-8.90Steel/Zinc PlatedCrVI-free passivated

50E71-16AGV
Rivet/Screw Mounting8.90-9.50Steel/Zinc PlatedCrVI-free passivated

50E71-17AGV
Rivet/Screw Mounting9.50-10.10Steel/Zinc PlatedCrVI-free passivated

50E71-18AGV
Rivet/Screw Mounting10.10-10.70Steel/Zinc PlatedCrVI-free passivated

50E71-19AGV
Rivet/Screw Mounting10.70-11.30Steel/Zinc PlatedCrVI-free passivated

50E71-20AGV
Rivet/Screw Mounting11.30-11.90Steel/Zinc PlatedCrVI-free passivated

Cross Recess Head


Longer stud lengths are available, please contact the office for more information

Other head styles for the 50F Series are also available.

Select a style from the options below for more information.

Hex Head Slotted Recess


Hex Recess Head


Fixed Wing Head


Offset Fixed Wing Head


Folding Bail Handle


Star Form Head


Wing Head


Square Head
