2700 Series
2700 Series light duty quarter turn fastener studs are available in a range of head styles and sizes.
View the tables below, select your preferred head style and click on a part number for more information.
N.B When selecting a quarter turn fastener assembly it is essential to know the grip range of your application.
Panel (P) + Frame (F) = Grip (G)
Selecting the Fastener
P = Panel Thickness
F = Frame Thickness
G = Total thickness/Grip (P + F) as well as possible gaskets, paint thickness or gaps. This dimension gives the stud length number in the corresponding series tables.
2700 Series Features
- Max. tensile strength 1330 N, working load 900 N
- Small fastener giving a high tensile load
- Wide range of stud head styles and receptacles
Receptacle Types
The images on the right help to determine the stud length number when using each type of receptacle.
Use the table below to cross reference the stud number, grip range and receptacle type.

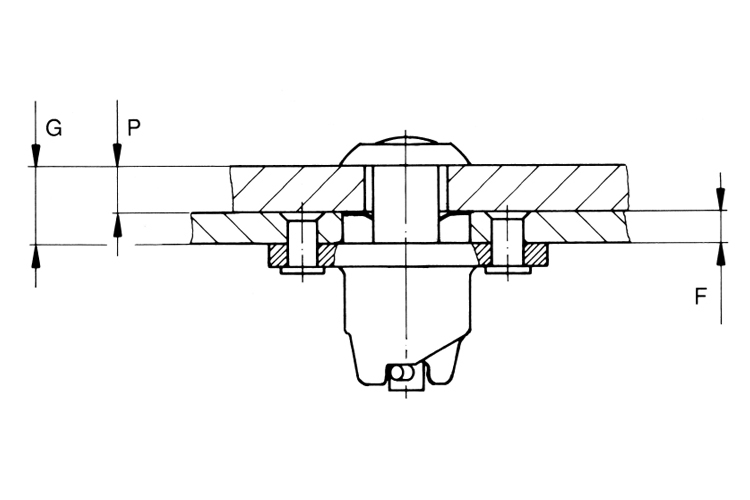

Type(s) 1 & 3
G = P + F
N.B For Type 3 Grip = 9.9mm minimum

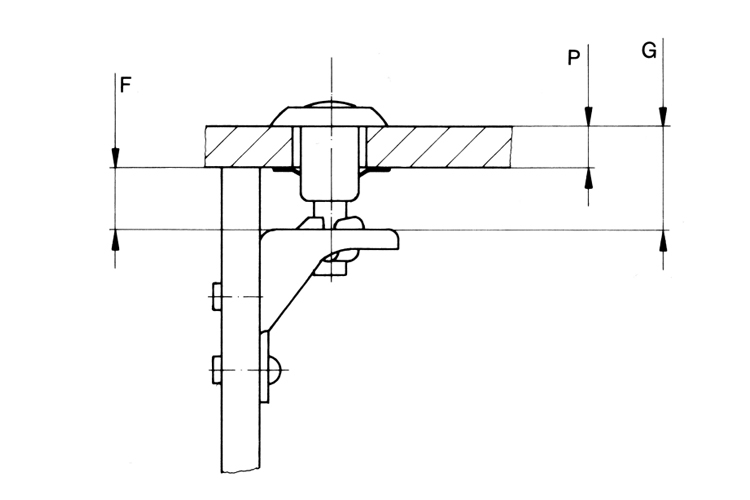

Type 2
G = P + F
0.75 minimum

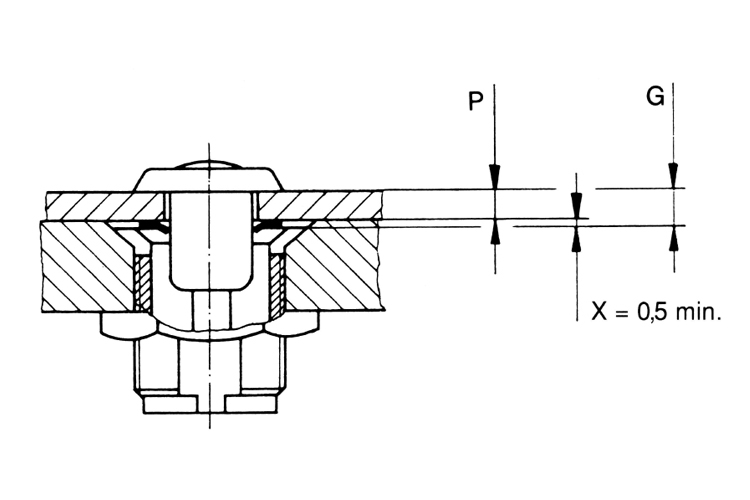

Type 3
G = P + X
0.5 mm minimum
Scroll down the page for alternative head styles
| Head Style | Part Number | Receptacle | Grip Range | Material | Finish |
| Slotted Recess Flush Head | V27S01-1AGV | Type 1 Type 3 | 0.75-1.50 9.90-10.65 | Steel/Zinc Plated | CrVI-free passivated |
| V27S01-2AGV | Type 1 Type(s) 2, 4 Type 3 | 1.50-2.30 0.75-1.50 10.65-11.40 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-3AGV | Type 1 Type(s) 2, 4 Type 3 | 2.30-3.05 1.50-2.30 11.40-12.20 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-4AGV | Type 1 Type(s) 2, 4 Type 3 | 3.05-3.80 2.30-3.05 12.20-12.95 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-5AGV | Type 1 Type(s) 2, 4 Type 3 | 3.80-4.60 3.05-3.80 12.95-13.70 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-6AGV | Type 1 Type(s) 2, 4 Type 3 | 4.60-5.35 3.80-4.60 13.70-14.50 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-7AGV | Type 1 Type(s) 2, 4 Type 3 | 5.35-6.10 4.60-5.35 14.50-15.25 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-8AGV | Type 1 Type(s) 2, 4 Type 3 | 6.10-6.85 5.35-6.10 15.25-16.00 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-9AGV | Type 1 Type(s) 2, 4 Type 3 | 6.85-7.60 6.10-6.85 16.00-16.75 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-10AGV | Type 1 Type(s) 2, 4 Type 3 | 7.60-8.40 6.85-7.60 16.75-17.50 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-11AGV | Type 1 Type(s) 2, 4 Type 3 | 8.40-9.15 7.60-8.40 17.50-18.30 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-12AGV | Type 1 Type(s) 2, 4 Type 3 | 9.15-9.90 8.40-9.15 18.30-19.05 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-13AGV | Type 1 Type(s) 2, 4 Type 3 | 9.90-10.65 9.15-9.90 19.05-19.80 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-14AGV | Type 1 Type(s) 2, 4 Type 3 | 10.65-11.40 9.90-10.65 19.80-20.60 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-15AGV | Type 1 Type(s) 2, 4 Type 3 | 11.40-12.20 10.65-11.40 20.60-21.35 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-16AGV | Type 1 Type(s) 2, 4 Type 3 | 12,20-12.95 11.40-12.20 21.35-22.10 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-17AGV | Type 1 Type(s) 2, 4 Type 3 | 12.95-13.70 12.20-12.95 22.10-22.85 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-18AGV | Type 1 Type(s) 2, 4 Type 3 | 13.70-14.50 12.95-13.70 22.85-23.60 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-19AGV | Type 1 Type(s) 2, 4 Type 3 | 14.50-15.25 13.70-14.50 23.60-24.40 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S01-20AGV | Type 1 Type(s) 2, 4 Type 3 | 15.25-16.00 14.50-15.25 24.40-25.15 | Steel/Zinc Plated | CrVI-free passivated |
Slotted Recess Flush Head
Stainless steel versions of this head style are also available, see PDF document in the 'Downloads'window
Longer stud lengths are available, please contact the office for more information
| Head Style | Part Number | Receptacle | Grip Range | Material | Finish |
| Cross Recess Flush Head | V26S02-1AGV | Type 1 Type 3 | 0.75-1.50 9.90-10.65 | Steel/Zinc Plated | CrVI-free passivated |
| V27S02-2AGV | Type 1 Type(s) 2, 4 Type 3 | 1.50-2.30 0.75-1.50 10.65-11.40 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-3AGV | Type 1 Type(s) 2, 4 Type 3 | 2.30-3.05 1.50-2.30 11.40-12.20 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-4AGV | Type 1 Type(s) 2, 4 Type 3 | 3.05-3.80 2.30-3.05 12.20-12.95 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-5AGV | Type 1 Type(s) 2, 4 Type 3 | 3.80-4.60 3.05-3.80 12.95-13.70 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-6AGV | Type 1 Type(s) 2, 4 Type 3 | 4.60-5.35 3.80-4.60 13.70-14.50 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-7AGV | Type 1 Type(s) 2, 4 Type 3 | 5.35-6.10 4.60-5.35 14.50-15.25 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-8AGV | Type 1 Type(s) 2, 4 Type 3 | 6.10-6.85 5.35-6.10 15.25-16.00 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-9AGV | Type 1 Type(s) 2, 4 Type 3 | 6.85-7.60 6.10-6.85 16.00-16.75 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-10AGV | Type 1 Type(s) 2, 4 Type 3 | 7.60-8.40 6.85-7.60 16.75-17.50 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-11AGV | Type 1 Type(s) 2, 4 Type 3 | 8.40-9.15 7.60-8.40 17.50-18.30 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-12AGV | Type 1 Type(s) 2, 4 Type 3 | 9.15-9.90 8.40-9.15 18.30-19.05 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-13AGV | Type 1 Type(s) 2, 4 Type 3 | 9.90-10.65 9.15-9.90 19.05-19.80 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-14AGV | Type 1 Type(s) 2, 4 Type 3 | 10.65-11.40 9.90-10.65 19.80-20.60 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-15AGV | Type 1 Type(s) 2, 4 Type 3 | 11.40-12.20 10.65-11.40 20.60-21.35 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-16AGV | Type 1 Type(s) 2, 4 Type 3 | 12,20-12.95 11.40-12.20 21.35-22.10 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-17AGV | Type 1 Type(s) 2, 4 Type 3 | 12.95-13.70 12.20-12.95 22.10-22.85 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-18AGV | Type 1 Type(s) 2, 4 Type 3 | 13.70-14.50 12.95-13.70 22.85-23.60 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-19AGV | Type 1 Type(s) 2, 4 Type 3 | 14.50-15.25 13.70-14.50 23.60-24.40 | Steel/Zinc Plated | CrVI-free passivated | |
| V27S02-20AGV | Type 1 Type(s) 2, 4 Type 3 | 15.25-16.00 14.50-15.25 24.40-25.15 | Steel/Zinc Plated | CrVI-free passivated |
Cross Recess Flush Head
Longer stud lengths are available, please contact the office for more information
