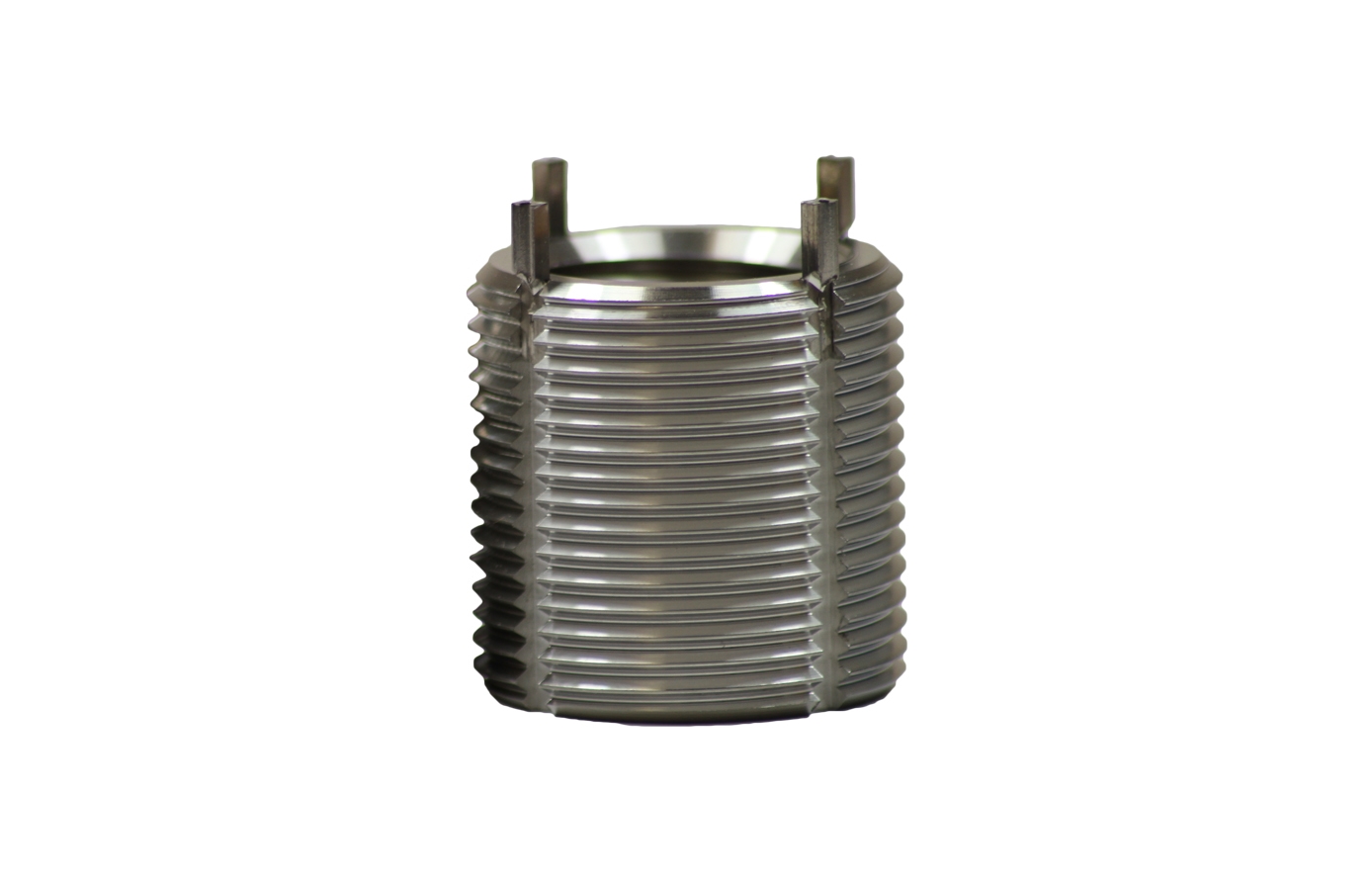

KNHM16x2.0 Metric Series Keensert
KNHM16X2.00
See PDF Document in 'Download' window for available sizes and Installation Instructions
Features
M16 x 2.00 class 5H Internal thread (non locking)
M22 x 1.50 class 4H External Thread with modified minor diameter
Hole Preparation Tap Drill size 20.5mm
M22 x 1.50 class 6H Thread Tap size, Min 24.5 deep
Material
Insert -303CRES (passivated)
Kees-302CRES
Quick quote
Need a quote fast?
Enter your requirements and get a quote back in minutes...
| Company Name | |
| Part Number | KNHM16x2.0 |
| Minimum order quantity | 10 |
| Your order quantity | |
| Tool Required | Y/N |
| Send |
Installation Tools
Metric Installation Tools for Light Duty KeensertsĀ® available in thread sizes M3 - M12
CAD Models
CAD Models are available upon request
