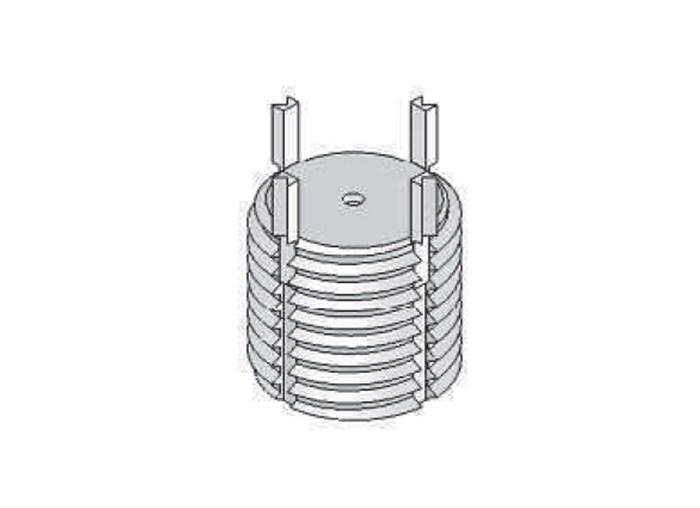

010-160-1615 Metric Series Keensert

010-160-1615

See PDF Document in 'Download' window for available sizes and Installation Instructions

Features

• Ideal for thead repair or rectifying misplaced holes
• Can be tapped with BSF/BSW/BA/NPT etc internal threads
• Standard taps & drills for hole preparation
• Installation and removal as per standard Keenserts
• Easy to install-no special tools required
• Manfactured from stainless steel per EN 10088 1.4305

M16 X 1.5 Class 4H External thread with modified minor diameter

Maximum internal thread major diameter 12.00

Hole Preparation Tap Drill size 14.75MM, Min Thread 18.50 deep

Material

Stainless Steel per EN 10088 1.4305
