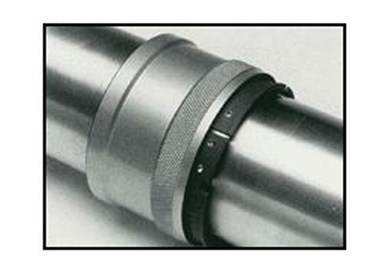

11J03 Series Flexible Coupling

11J03 Series

Meets Military/Commercial Requirements:

Coupling design conforms to all applicable military and commercial specification requirements for flexible fuel or air couplings intended for service at pressures of 125 PSIG (operating), 250 PSIG (proof) and 375 PSIG (burst) and temperature from -65Ā° to +300Ā°F.

Flexible:

Axial motion and angular flexibility are defined by dimension "D". As much as Ā±5Ā° angular flexibility is provided at a minimum gap of .08 inches.

Click on link below...

11J03 series


Installation Instructions

  1. When coupling is ready to be assembled, install both seals and lubricate lightly both seal O.D. and the coupler I.D.
  2. Slide coupler over both flanges until firm contact is established between chamfered shoulder on retainer I.D. and the spherical surface on flange O.D.
  3. Tighten nut until it contacts spherical surface on flange O.D.
  4. No nut threads should be exposed with coupling in fully extended position.
