AeroLoc 200-1000 Series

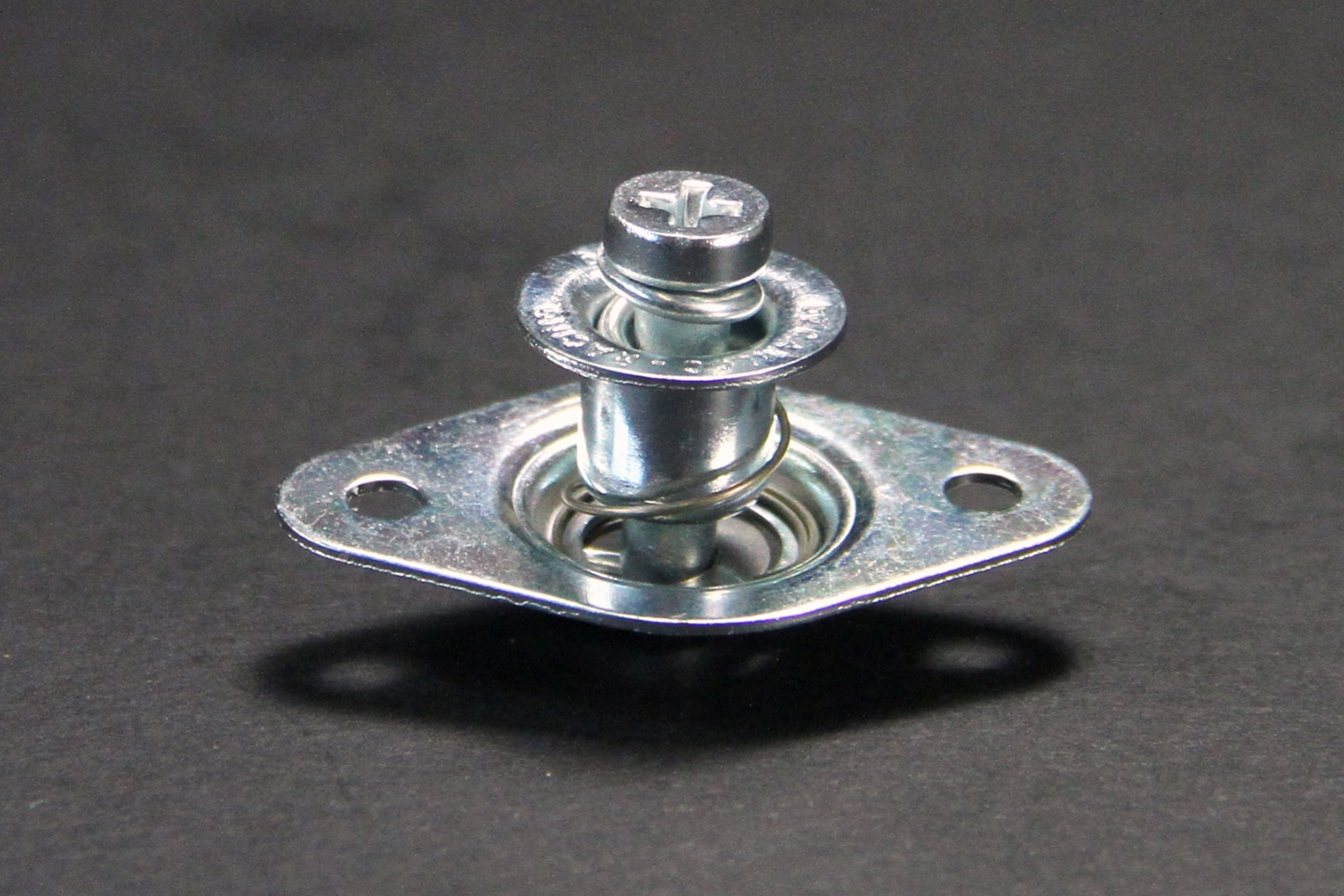

AeroLoc 200-1000 Series have a cross-recess head style with plain hole fixings.

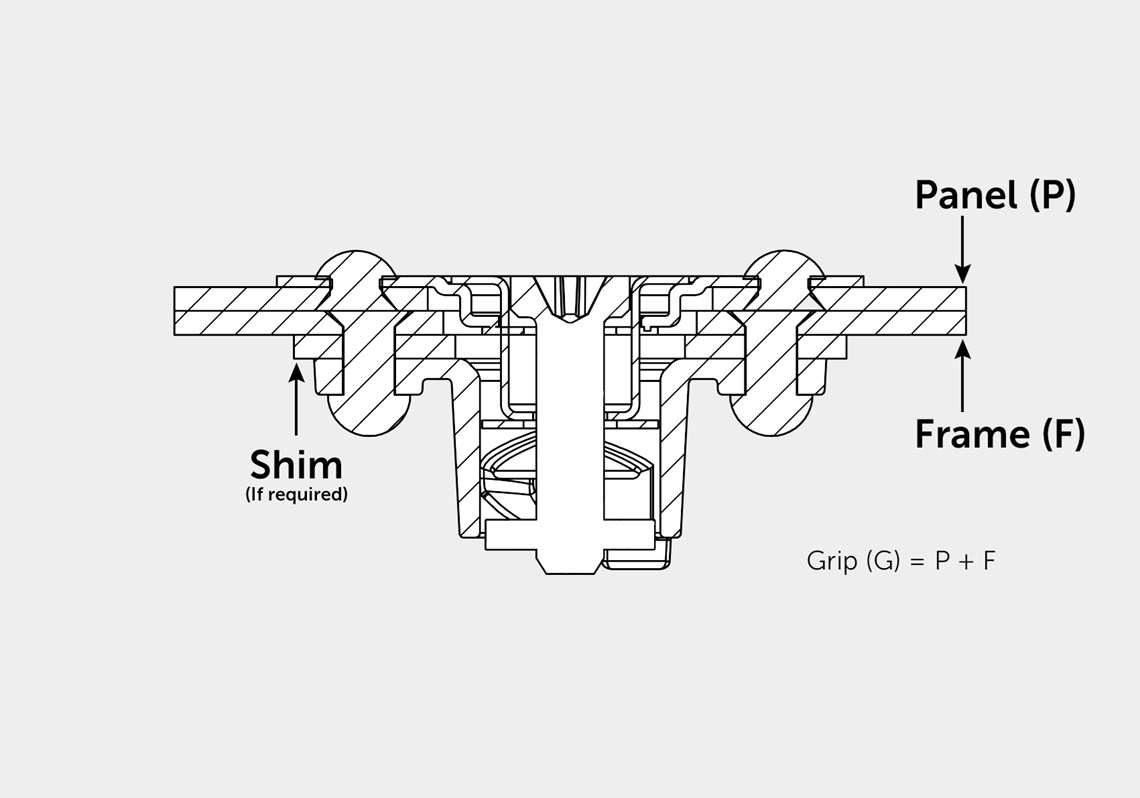

AeroLoc quarter turn fasteners are grip range sensitive. To select the required stud size you will need to establish the Grip. This is the panel and frame thickness combined: P + F = G (see Fig 1)

Once you have determined your grip size (G), select a stud part number from Table 1 below.

Specifying your AeroLoc

1. Refer to Table 1 and select the part number for your grip (G).

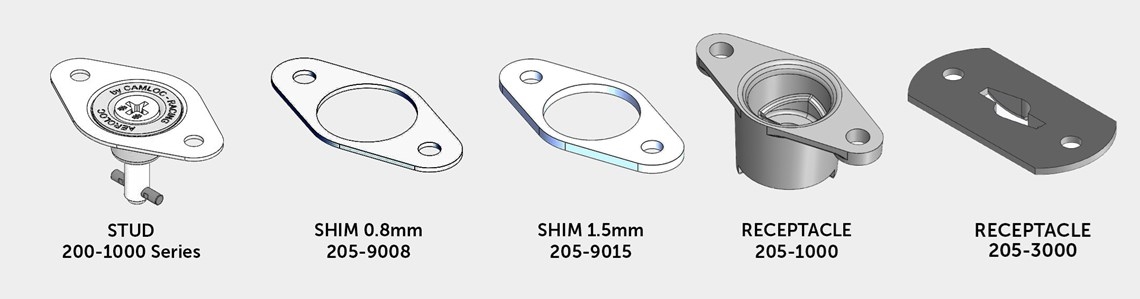

2. Configure assembly part numbers (see Fig 2):

  • Stud
  • Shim (if required)
  • Receptacle
AeroLoc 200-1000 Series
AeroLoc 200-1000 Series

Dimensional Drawings

Table 1: AeroLoc standard grip range

Table 2: AeroLoc large grip range
